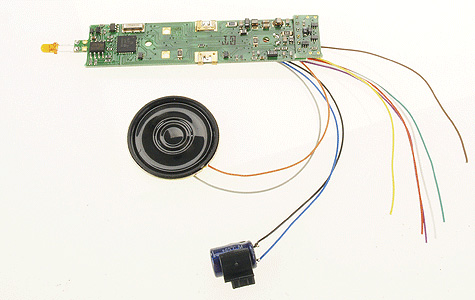

SDH104K1A+FN04K1 Mobile Decoder Combo
For Kato AC4400 units

Preloaded With AC4400 Sound Scheme!

Features:

• Current Rating: 1.0 amp (1.3 amps peak)
• Size: 21mm x 75mm x 2.5mm
• Installation: Board replacement decoder (plug n’ play)
• Function Outputs: 4-200mA
• 2&4 digit addressing
• Simplified scaleable speed stabilization (back EMF)
• 3 step speed tables
• Advanced speed tables
• Support for all DCC programming methods
• Operations mode read back capability
• Advanced consisting
• Transponding
• Motor isolation protection
• Supersonic motor drive for silent motor operation.
• One-step decoder factory CV reset
• White LEDs on decoders that come with LEDs
• 6 FX3 function outputs
• Decoder lock

Digitrax Real FX3 Features

• Turn functions on and off.
• Head lights and tail lights are automatically reversing unless you make them independent
• All function outputs have FX generators for prototypical lighting effects and have qualifiers for FX effects and qualifiers for standard on/off functions
• All Digitrax Series 3 decoders have FX3 type functions
• FX3 decoders offer full function remapping so you can choose which function (F0-F12) controls each function lead
• FX3 decoders offer master light switch capability
• FX3 decoders offer qualifiers for FX function operation qualified by one of the following: the loco's direction of travel, whether F0 is on or off, loco direction and F0, or whether the loco is moving or not
• These qualifiers are also available on function outputs that are used as standard on/off functions
